- Package Includes: 1 Piece Buck module with digital tube LM2596 module | Note: | The current detection module is the low-end testing, directly connect the input negative with the output negative!
- Input voltage range: 4.5-28V
- Note: 28V is the maximum voltage of the limit. Please leave some room for use or it will be damaged.
- Output voltage range: 1.3V-25V (buck mode, input must be greater than 2V output voltage)
- Output current: continuous 1.5A output
Descriptions:
Input voltage range: 4.5-28V
Note: 28V is the maximum voltage of the limit. Please leave some room for use or it will be damaged.
Output voltage range: 1.3V-25V (buck mode, input must be greater than 2V output voltage)
Output current: continuous 1.5A output
Output power: up to 15W
Ripple frequency: about 150Khz
Ripple peak value: about 100mV
Voltmeter accuracy: (5 1 words)
Static power consumption: typically about 20ma (closely related to input voltage output voltage and digital tube color, actual current will be biased)
IN : Input positive IN-
Input negative OUT
Output positive OUT-
Output negative
Specifications:
Material: plastic electronic components
Product size: 62mm x 26mm x 14mm/2.44 x 1.02 x 0.55inch
Package includes:

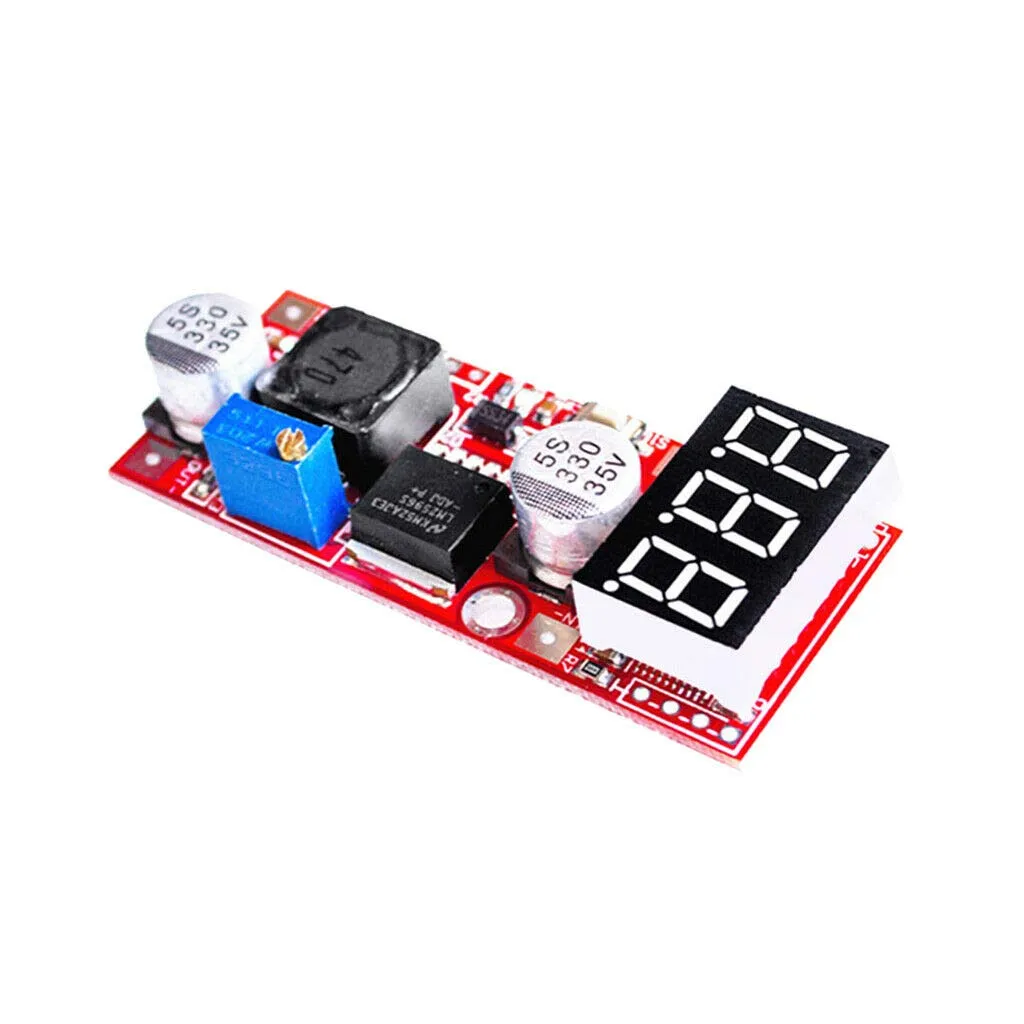

1 Piece Buck module with digital tube LM2596 module
Note:
The current detection module is the low-end testing, directly connect the input negative with the output negative!
- Date First Available : November 10, 2024
- Manufacturer : CHIKIMIKI
