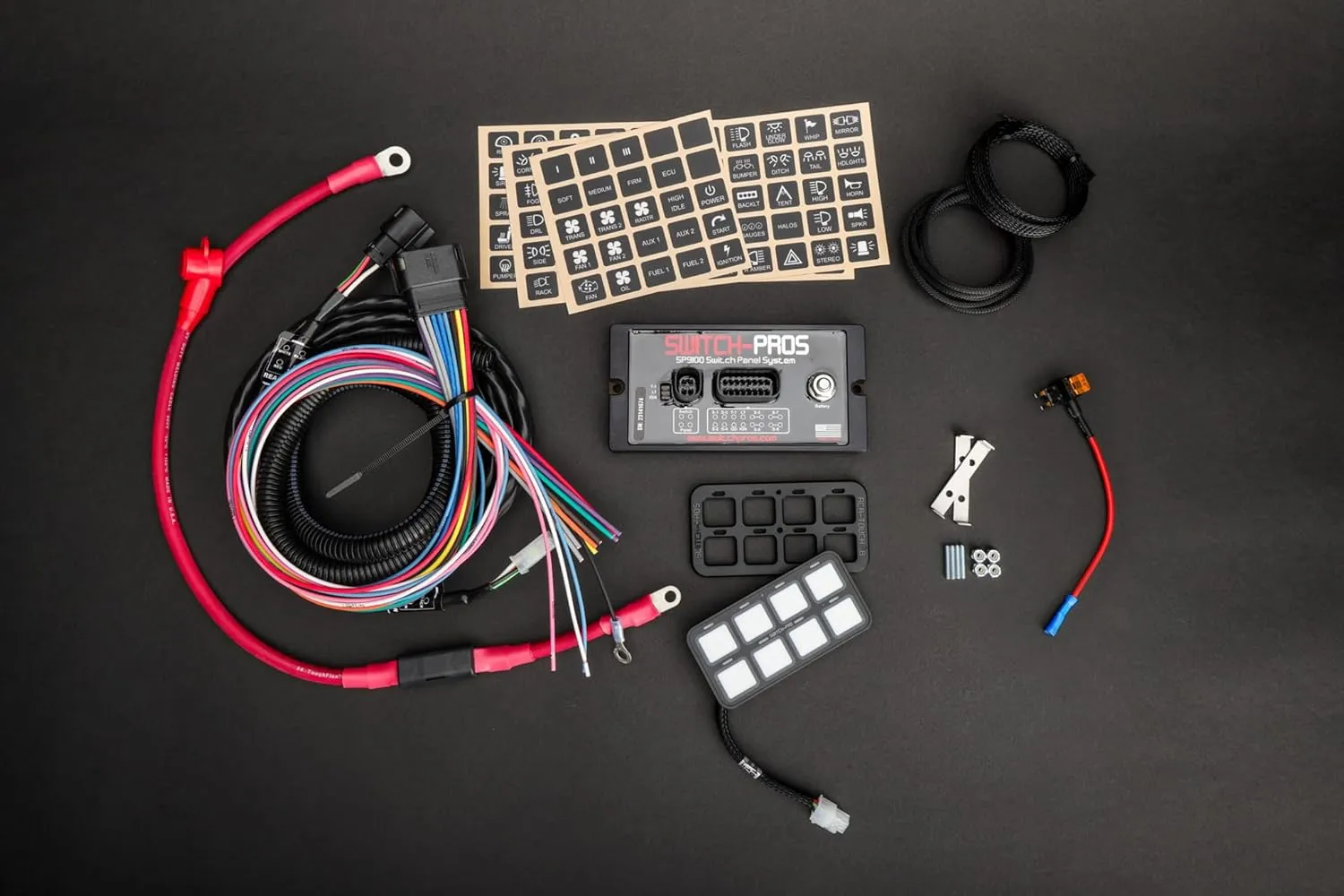

SP-9100 Bezel Style 8-Switch Panel Power System with Concealed Mounting Hardware Eight user-programmable switches Four 35A circuits and four 18A circuits Waterproof, Solid State 125A Power Module RGB Backlighting provides unlimited color options, using Color Picker on App Daisy Chain up to 3 Switch Panels to One Power Module Switches can be programmed for: On/Off or Momentary Ignition or Battery Input Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation Memory Function Master Mode, with ability to turn multiple outputs On AND Off with one touch Automatic Power-Up upon vehicle start up Two External trigger inputs can each activate up to four outputs (Active Hi or Active Low) Lighting outputs can dim from 100% to 10%, with ability to dim during Flash or Strobe patterns Sleep Mode for minimal power consumption Color Coded circuit wires 100 User-selectable switch legends LED Input Status Indicators for easy troubleshooting Time Delay Off function available for all circuits Splash proof switch panel with Polycarbonate overlay faceplate Program and control the system from switch panel pad or smart phone Bluetooth interface with FREE Apple or Android App Battery Voltage Readout on App screen No Fuses or Bulky Relay box Built-In Bluetooth Module Switch Panel Specs: RGB Backlighting provides unlimited color options, allows for exact matching to factory dash lighting Built-In Bezel Style Switch Panel enclosure measures 4” L x 2” W x .375” Orange LED switch indicators 100 User Selectable Legends Power Module Specs: 8 Outputs: 4 rated @ 35A, 4 rated @ 18A 125A maximum rating Waterproof and Solid State 6”L x 3”W x .5”H (excluding connectors)

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 7.65 x 7.65 x 11.98 inches; 3.6 Pounds
• Date First Available ‏ : ‎ March 1, 2017
• Manufacturer ‏ : ‎ Switch Pros
